Radial bearing set RPM

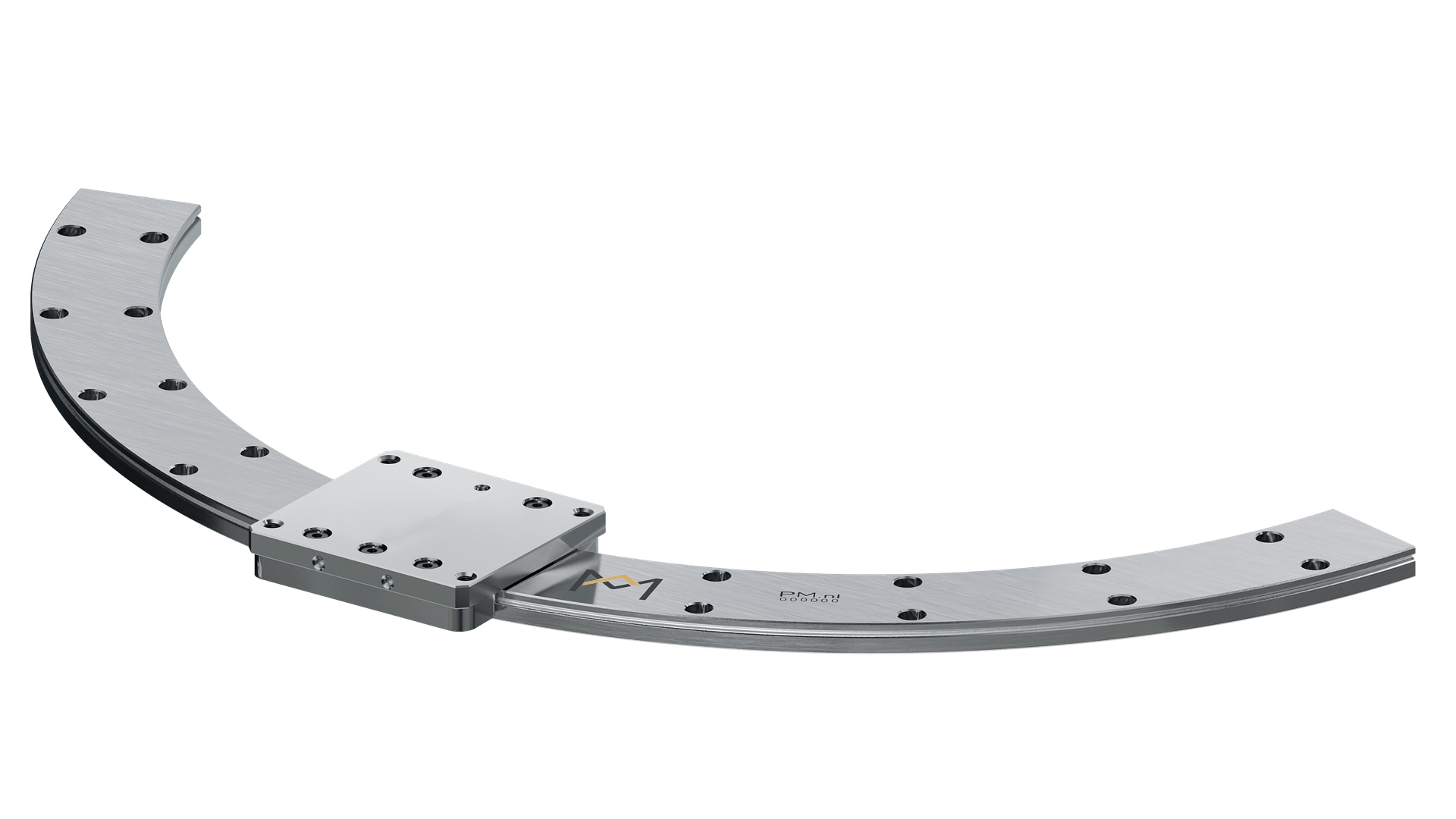

Introducing the stainless steel radial bearings type RPM, designed to provide unparalleled radial positioning at very low friction. These bearings come as a factory-preloaded set, ensuring optimal performance. RPM bearings are available in both arc and full circular segments, offering 360° rotational freedom for maximum versatility. The rail can be equipped with one or more preloaded carriages, allowing it to move higher loads at high precision.

Features

The main parts are made of stainless steel and precision ground. The inner and outer ball recirculating units are equipped with balls and can be play free preloaded. Multiple carriages can be mounted on one rail.

1

Stainless steel design, ring guide is available as circle segment or arc segment.

2

Carriage with pre-drilled threaded holes.

3

Outer and inner ball recirculating units, adjustable by excentre for play free and accurate motion.

1 Stainless steel design, ring guide is available as circle segment or arc segment.

2 Carriage with pre-drilled threaded holes.

3 Outer and inner ball recirculating units, adjustable by excentre for play free and accurate motion.

Drawing

overlay

Specifications

3D CAD Models

Type Load (N) A (mm) B (mm) Download STP
RPM 3-10/18 720 100 180
RPM 3-12/20 720 120 200
RPM 3-22/30 720 220 300
RPM 3-32/40 720 320 400
RPM 3-42/50 720 420 500
