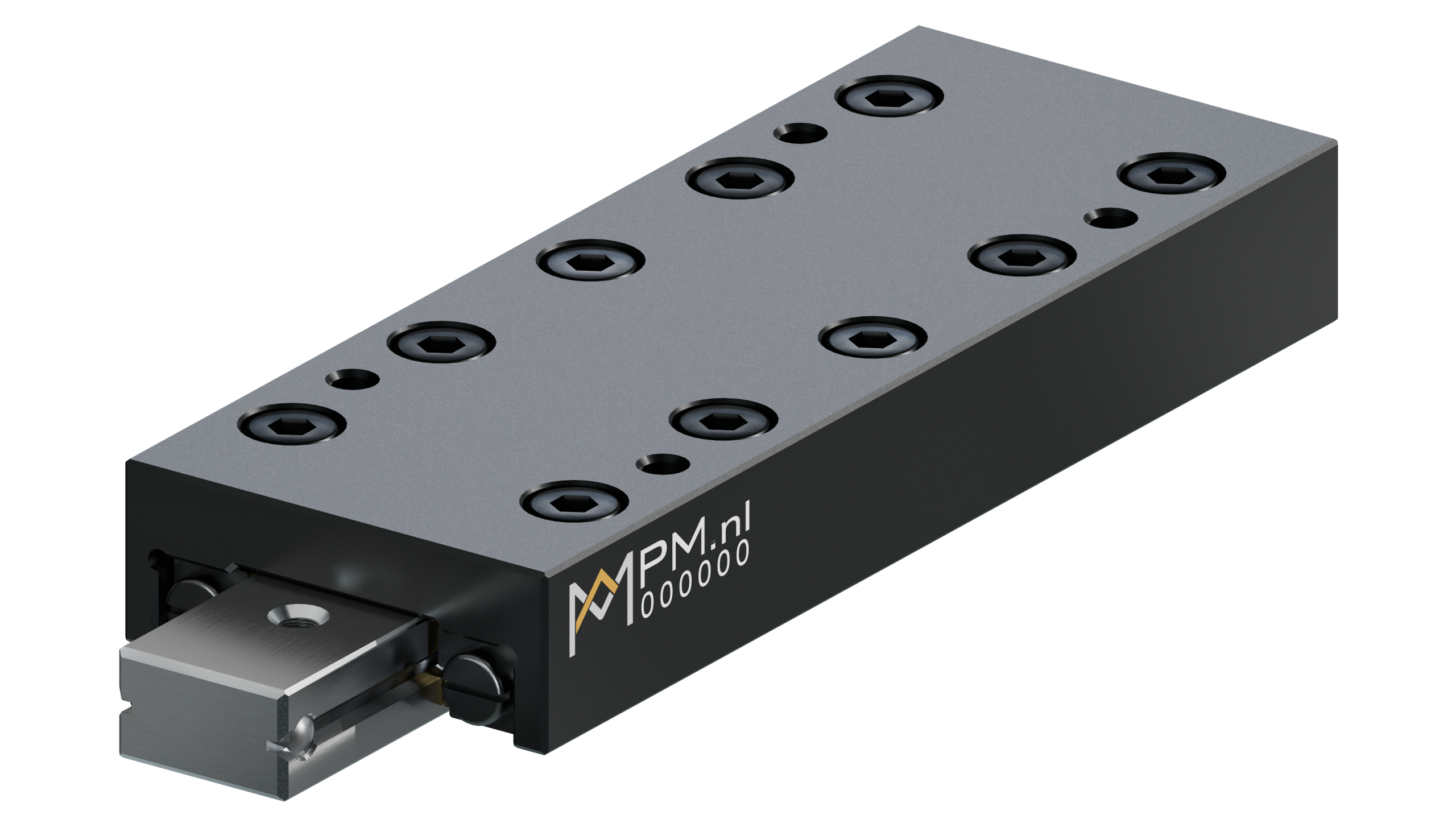

Miniature linear slide type RTS

Miniature linear slides type RTS are low-profile table units that are play-free preloaded and ready for mounting. The through-hardened centre rail act as the slide base and features threaded holes for mounting. The slide unit includes precision-finished crossed-roller linear guides for stiffness and repeatable precision. Miniature linear slide type RTS offers excellent running motion accuracy and is able to carry medium loads and moments in every direction.

Features

RTS low profile and frictionless linear slides are available in 3 sizes in various lengths. These slides excel in sensitive applications that demand ultra-tight tolerances, offering exceptional stability and long-lasting performance. Designed for applications which requiring the highest levels of precision.

1

Low-profile design.

2

Stroke range 12 - 130 mm.

3

Pre-drilled holes for easy mounting.

4

The through-hardened center rail serves as the slide base, ensuring consistent and highly accurate guidance.

1 Low-profile design.

2 Stroke range 12 - 130 mm.

3 Pre-drilled holes for easy mounting.

4 The through-hardened center rail serves as the slide base, ensuring consistent and highly accurate guidance.

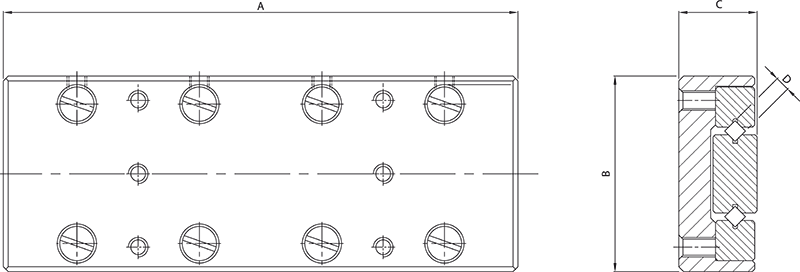

Drawing

overlay

3D CAD Models

Type Weight (Kg) Load (N) Stroke (mm) A (mm) B (mm) C (mm) D (mm) Download STP
RTS-1525 0.03 208 12 25 20 8 1.5
RTS-1535 0.04 364 18 35 20 8 1.5
RTS-1545 0.05 468 25 45 20 8 1.5
RTS-1555 0.06 572 32 55 20 8 1.5
RTS-1565 0.07 676 40 65 20 8 1.5
RTS-1575 0.08 780 45 75 20 8 1.5
RTS-1585 0.09 936 50 85 20 8 1.5
RTS-2035 0.10 430 18 35 30 12 2
RTS-2050 0.12 602 30 50 30 12 2
RTS-2065 0.16 860 40 65 30 12 2
RTS-2080 0.19 1032 50 80 30 12 2
RTS-2095 0.23 1290 60 95 30 12 2
RTS-2110 0.26 1462 70 110 30 12 2
RTS-2125 0.29 1720 80 125 30 12 2
RTS-3055 0.10 952 30 55 40 16 3
RTS-3080 0.35 1360 45 80 40 16 3
RTS-3105 0.47 1904 60 105 40 16 3
RTS-3130 0.59 2312 75 130 40 16 3
RTS-3155 0.70 2856 90 155 40 16 3
RTS-3180 0.82 3264 105 180 40 16 3
RTS-3205 0.92 3672 130 205 40 16 3
