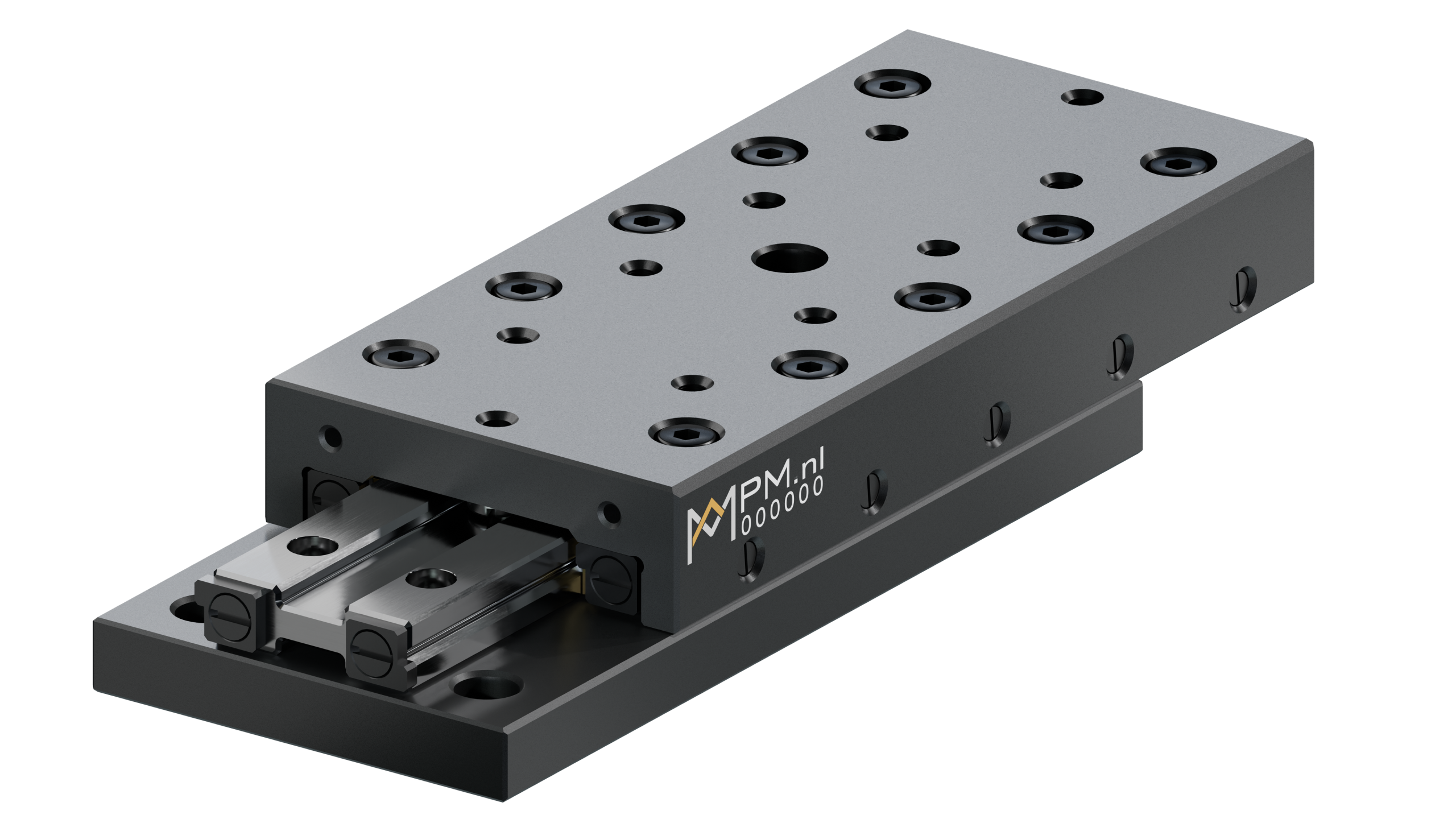

Frictionless cross roller slide type RT

Cross roller slide of the RT type: Made of steel, these tables provide smooth and nearly frictionless linear motion. With preloaded cross roller guides, they are the perfect choice for high-precision applications. Offering micrometre-level accuracy, high load capacity, and system stiffness, they are ideal for demanding tasks. Factory preloaded, lightly lubricated, and ready for immediate use. Available for strokes ranging from 10 to 950 mm.

Download product datasheet

Features

The RT serie of linear slides are similar to the aluminum range of slides, but there are sometimes slight differences in height and width. All sizes are suitable to mount in any kind of mounting orientation. The side, opposite of the lateral set screws can be used as reference side. Load may be applied in any direction.

1

Internal stops, created by protruding screw heads between the slide top and base, prevent overtravel of the linear bearings during handling.

2

Black oxide finishing after precision grinding of the table parts. The threaded holes in slide top and counterbored clearance holes in slide base offers easy mounting without additional machining.

3

Unique center rail design for superior straight line and flatness accuracy.

4

Stroke range 10 - 950 mm and maximum load capacity up to 71.550 N.

1 Internal stops, created by protruding screw heads between the slide top and base, prevent overtravel of the linear bearings during handling.

2 Black oxide finishing after precision grinding of the table parts. The threaded holes in slide top and counterbored clearance holes in slide base offers easy mounting without additional machining.

3 Unique center rail design for superior straight line and flatness accuracy.

4 Stroke range 10 - 950 mm and maximum load capacity up to 71.550 N.

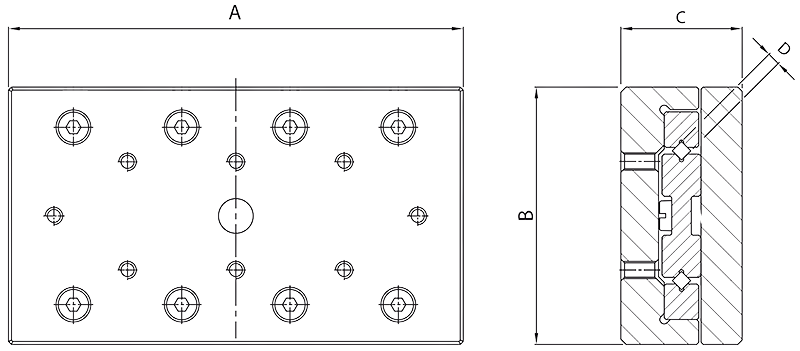

Drawing

overlay

Specifications

Download product datasheet

3D CAD Models

Type Weight (Kg) Load (N) Stroke (mm) A (mm) B (mm) C (mm) D (mm) Download STP
RTN-1520 0.10 260 10 25 29.6 17 1.5
RTN-1530 0.12 364 15 35 29.6 17 1.5
RTN-1540 0.16 520 20 45 29.6 17 1.5
RTN-1550 0.19 624 25 55 29.6 17 1.5
RTN-1560 0.23 780 30 65 29.6 17 1.5
RTN-1570 0.27 884 35 75 29.6 17 1.5
RTN-1580 0.30 1040 40 85 29.6 17 1.5
RTN-1590 0.34 1144 45 95 29.6 17 1.5
RTN-15100 0.37 1300 50 105 29.6 17 1.5
RTL-1530 0.12 312 20 35 29.6 17 1.5
RTL-1540 0.16 416 30 45 29.6 17 1.5
RTL-1550 0.19 520 40 55 29.6 17 1.5
RTL-1560 0.23 572 50 65 29.6 17 1.5
RTL-1570 0.27 676 60 75 29.6 17 1.5
RTL-1580 0.30 780 70 85 29.6 17 1.5
RTL-1590 0.34 832 80 95 29.6 17 1.5
RTL-15100 0.37 936 90 105 29.6 17 1.5
RTN-2030 0.19 430 15 35 39.6 21 2
RTN-2045 0.28 688 22 50 39.6 21 2
RTN-2060 0.38 946 30 65 39.6 21 2
RTN-2075 0.47 1204 37 80 39.6 21 2
RTN-2090 0.56 1376 45 95 39.6 21 2
RTN-2105 0.65 1634 52 110 39.6 21 2
RTN-2120 0.75 1892 60 125 39.6 21 2
RTN-2135 0.84 2150 67 140 39.6 21 2
RTN-2150 0.93 2408 75 155 39.6 21 2
RTL-2045 0.28 602 30 50 39.6 21 2
RTL-2060 0.38 774 45 65 39.6 21 2
RTL-2075 0.47 946 60 80 39.6 21 2
RTL-2090 0.56 1118 75 95 39.6 21 2
RTL-2105 0.65 1290 90 110 39.6 21 2
RTL-2120 0.75 1376 105 125 39.6 21 2
RTL-2135 0.84 1548 120 140 39.6 21 2
RTL-2150 0.93 1720 135 155 39.6 21 2
RTN-3075 0.94 1496 37 80 59.5 28 3
RTN-3100 1.24 2040 50 105 59.5 28 3
RTN-3125 1.55 2448 62 130 59.5 28 3
RTN-3150 1.86 2992 75 155 59.5 28 3
RTN-3175 2.15 3536 87 180 59.5 28 3
RTN-3200 2.46 4080 100 205 59.5 28 3
RTN-3250 3.06 5032 125 255 59.5 28 3
RTN-3300 3.66 6120 150 305 59.5 28 3
RTN-3350 4.27 7072 175 355 59.5 28 3
RTN-3400 4.87 8160 200 405 59.5 28 3
RTL-3050 0.64 952 30 55 59.5 28 3
RTL-3075 0.94 1224 55 80 59.5 28 3
RTL-3100 1.24 1632 80 105 59.5 28 3
RTL-3125 1.55 1904 105 130 59.5 28 3
RTL-3150 1.86 2312 130 155 59.5 28 3
RTL-3175 2.15 2584 155 180 59.5 28 3
RTL-3200 2.46 2992 180 205 59.5 28 3
RTL-3250 3.06 3672 230 255 59.5 28 3
RTL-3300 3.66 4352 280 305 59.5 28 3
RTL-3350 4.27 5032 330 305 59.5 28 3
RTL-3400 4.87 5712 380 405 59.5 28 3
RTN-4080 1.70 1855 50 85 80 35 4
RTN-4120 2.50 2915 75 125 80 35 4
RTN-4160 3.30 3710 105 165 80 35 4
RTN-4200 4.10 4770 130 205 80 35 4
RTN-4240 4.90 5830 155 245 80 35 4
RTN-4280 5.70 6890 185 285 80 35 4
RTN-4320 6.50 7950 210 325 80 35 4
RTN-4360 7.30 9010 235 365 80 35 4
RTN-4400 8.10 9805 265 405 80 35 4
RTL-4120 2.50 2650 90 125 80 35 4
RTL-4160 3.30 3445 130 165 80 35 4
RTL-4200 4.10 4240 170 205 80 35 4
RTL-4240 4.90 4770 210 245 80 35 4
RTL-4280 5.70 5565 250 285 80 35 4
RTL-4320 6.50 6360 290 325 80 35 35
RTL-4360 7.30 7155 330 365 80 35 4
RTL-4400 8.10 7950 370 405 80 35 4
RTN-6100 3.30 4320 50 110 99.5 45 6
RTN-6150 4.84 6480 75 160 99.5 45 6
RTN-6200 6.37 8640 100 210 99.5 45 6
RTN-6250 7.91 10800 125 260 99.5 45 6
RTN-6300 9.44 13500 150 310 99.5 45 6
RTN-6350 11.00 15660 175 360 99.5 45 6
RTN-6400 12.54 17820 17820 410 99.5 45 6
RTN-6450 14.07 19980 225 460 99.5 45 6
RTN-6500 15.60 22140 250 510 99.5 45 6
RTN-6600 18.65 27000 300 610 99.5 45 6
RTN-6700 21.71 31320 350 710 99.5 99.5 6
RTL-6100 3.30 3780 70 110 99.5 45 6
RTL-6150 4.84 5400 120 160 99.5 45 6
RTL-6200 6.37 6480 170 210 99.5 45 6
RTL-6250 7.91 8100 220 260 99.5 45 6
RTL-6300 9.44 9720 9720 310 99.5 45 6
RTL-6350 11.00 11340 320 360 99.5 45 6
RTL-6400 12.54 12420 370 410 99.5 45 6
RTL-6450 14.07 14040 420 460 99.5 45 6
RTL-6500 15.60 15660 470 510 99.5 45 6
RTL-6600 18.65 18900 570 610 99.5 45 6
RTL-6700 21.71 21600 670 710 99.5 45 6
RTN-9100 6.50 6750 50 110 148 60 9
RTN-9200 12.64 13500 100 210 148 60 9
RTN-9300 18.86 21600 150 310 148 60 9
RTN-9400 25.08 28350 200 410 148 60 9
RTN-9500 31.20 35100 250 510 148 60 9
RTN-9600 37.41 43200 300 610 148 60 9
RTN-9700 43.53 49950 350 710 148 60 9
RTN-9800 49.75 56700 400 810 148 60 9
RTN-9900 55.96 64800 450 910 148 60 9
RTN-91000 62.08 71550 500 1010 148 60 9
RTL-9200 12.64 10800 150 210 148 60 9
RTL-9300 18.86 16200 250 310 148 60 9
RTL-9400 25.08 21600 350 410 148 60 9
RTL-9500 31.20 25650 450 510 148 60 9
RTL-9600 37.41 31050 550 610 148 60 9
RTL-9700 43.53 35100 650 710 148 60 9
RTL-9800 49.75 40500 750 810 148 60 60
RTL-9900 55.96 44550 850 910 148 60 9
RTL-91000 62.08 49950 950 1010 148 60 9
