Deep groove cross-roller guide type RSDE

The design of the type RSDE precision cross roller guide is based on the conventional crossed roller precision linear guides. Thanks to a deeper ground V-groove as well as the rollers’ contact length is longer, the RSDE guideway offers higher load ratings and higher stiffness. Assembly dimensions are similar to those of the frictionless cross-roller guide RSD type.

Features

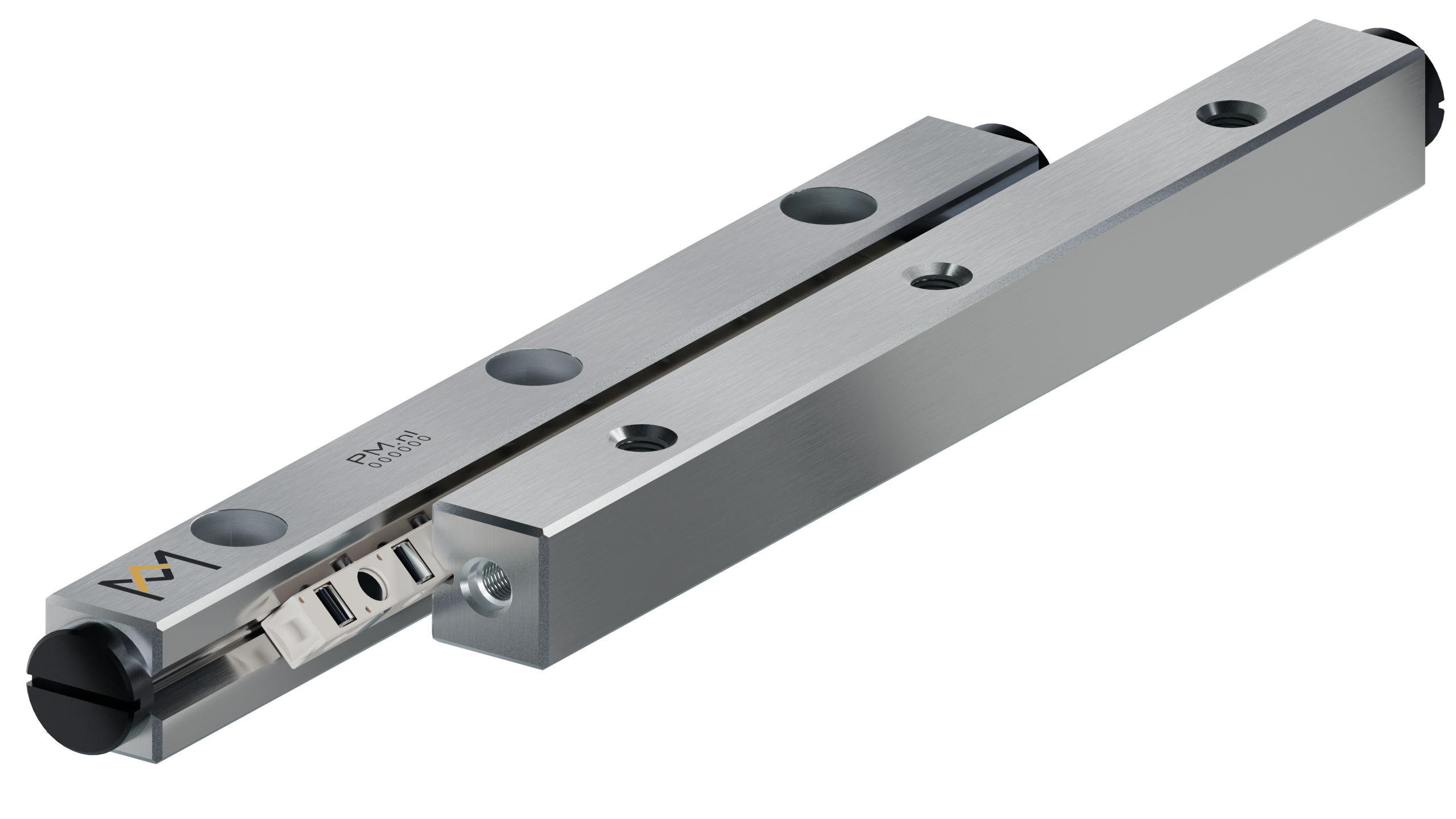

A set of deep-groove linear guides consists of four precision-ground V-groove RSDE-type rails, two crossed roller cages type KRE and eight end screws preventing the cage for running out. These sets can be composed by the customer by rail and cage length.

1 Through-hardened 90-degree deep V-groove rails made of bearing steel, precision ground. Minimal gab between two rails reduces risk of contamination entering the bearing.

2 POM roller cage type KRE with small distance between the rollers, which are retained in the cage. (optional PEEK material cages available)

3 The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.

4 Stroke length to be determined by the user (by rail length and cage length).

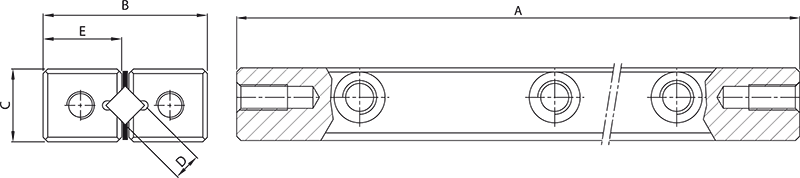

Drawing

Specifications

3D CAD Models

Type	Weight (Kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
RSDE-3050	0.022	50	18	8	3	8.6
RSDE-3075	0.034	75	18	8	3	8.6
RSDE-3100	0.046	100	18	8	3	8.6
RSDE-3125	0.058	125	18	8	3	8.6
RSDE-3150	0.070	150	18	8	3	8.6
RSDE-3175	0.082	175	18	8	3	8.6
RSDE-3200	0.094	200	18	8	3	8.6
RSDE-3225	0.106	225	18	8	3	8.6
RSDE-3250	0.118	250	18	8	3	8.6
RSDE-3275	0.130	275	18	8	3	8.6
RSDE-3300	0.142	300	18	8	3	8.6
RSDE-3350	0.166	350	18	8	3	8.6
RSDE-4080	0.065	80	22	11	4	10.6
RSDE-4120	0.098	120	22	11	4	10.6
RSDE-4160	0.131	160	22	11	4	10.6
RSDE-4200	0.164	200	22	11	4	10.6
RSDE-4240	0.197	240	22	11	4	10.6
RSDE-4280	0.230	280	22	11	4	10.6
RSDE-4320	0.263	320	22	11	4	10.6
RSDE-4360	0.296	360	22	11	4	10.6
RSDE-4400	0.329	400	22	11	4	10.6
RSDE-4440	0.362	440	22	11	4	10.6
RSDE-4480	0.395	480	22	11	4	10.6
RSDE-6100	0.147	100	31	15	6	14.9
RSDE-6150	0.219	150	31	15	6	14.9
RSDE-6200	0.293	200	31	15	6	14.9
RSDE-6250	0.365	250	31	15	6	14.9
RSDE-6300	0.439	300	31	15	6	14.9
RSDE-6350	0.512	350	31	15	6	14.9
RSDE-6400	0.585	400	31	15	6	14.9
RSDE-6450	0.661	450	31	15	6	14.9
RSDE-6500	0.731	500	31	15	6	14.9
RSDE-6600	0.876	600	31	15	6	14.9
RSDE-6700	1.021	700	31	15	6	14.9
RSDE-6800	1.165	800	31	15	6	14.9
RSDE-6900	1.312	900	31	15	6	14.9
RSDE-61000	1.457	1000	31	15	6	14.9
RSDE-61100	1.604	1100	31	15	6	14.9
RSDE-61200	1.752	1200	31	15	6	14.9
RSDE-9100	0.315	100	44	22	9	21.3
RSDE-9200	0.630	200	44	22	9	21.3
RSDE-9300	0.945	300	44	22	9	21.3
RSDE-9400	1.260	400	44	22	9	21.3
RSDE-9500	1.575	500	44	22	9	21.3
RSDE-9600	1.890	600	44	22	9	21.3
RSDE-9700	2.205	700	44	22	9	21.3
RSDE-9800	2.520	800	44	22	9	21.3
RSDE-9900	2.835	900	44	44	9	21.3
RSDE-91000	3.150	1000	44	22	9	21.3
RSDE-91100	3.466	1100	44	22	9	21.3
RSDE-91200	3.780	1200	44	22	9	21.3
