Set cross roller linear guide type RSDE

Cross roller guide type RSDE is designed to support and guide high loads with high precision. Thanks to a deeper ground V-groove as well as the rollers’ contact length is longer, the RSDE cross-roller linear guideways offer higher load ratings and higher stiffness than other types of cross roller guides. Envelope dimensions are comparable to those of the precision linear guide RSD type. RSDE cross-roller precision guides are perfect for applications requiring high dynamics and high repeatable precision with limited stroke.

Features

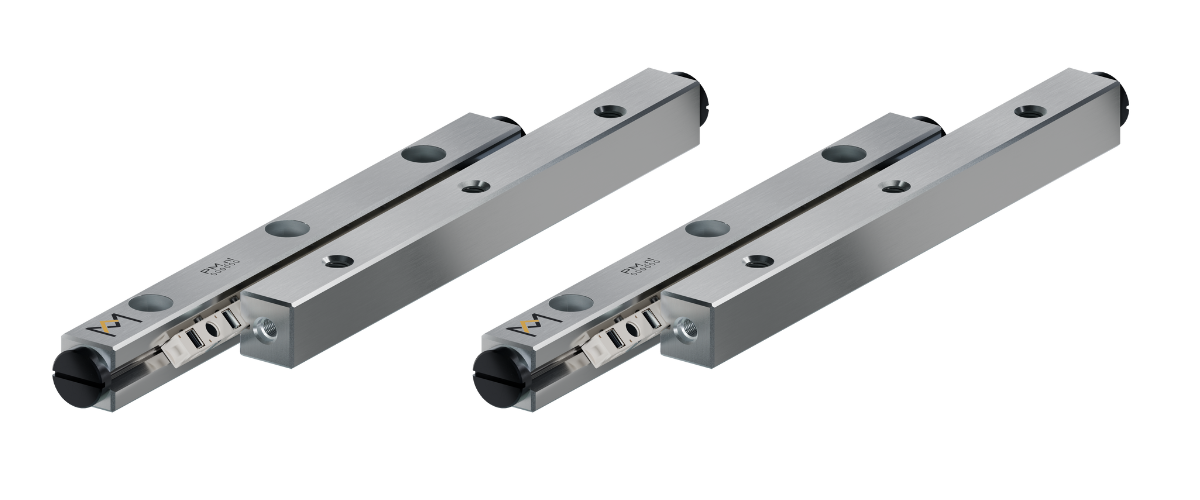

A set of linear guides consists of four precision-ground V-groove RSDE-type rails, two KRE-type crossed roller cages with a high density of cylindrical rollers and eight end screws preventing the cage for running out.

1 Through-hardened 90-degree V-groove rails made of bearing steel, precision ground. A deeper V-groove offers a longer contact line for the bearing rollers to carry higher loads and offering higher degree of stiffness. A small gap between two rails reduces the risk of impurities entering the bearing.

2 POM roller cage type KRE with small distance between the rollers, which are retained in the cage. (optional PEEK material cages available)

3 The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.

4 Stroke range 28 - 360 mm for standard sets. Sets with modified stroke lengths are available on request.

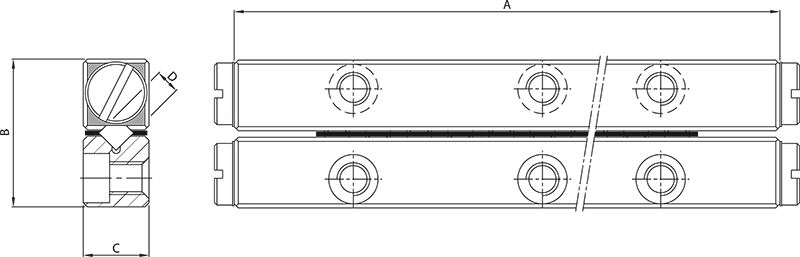

Drawing

Specifications

3D CAD Models

Type	Weight (Kg)	Load (N)	Stroke (mm)	A (mm)	B (mm)	C (mm)	D (mm)
RSDE-3050x10KRE	0.112	3920	28	50	18	8	3
RSDE-3075x15KRE	0.161	5880	48	75	18	8	3
RSDE-3100x21KRE	0.206	8232	58	100	18	8	3
RSDE-3125x25KRE	0.256	9800	78	125	18	8	3
RSDE-3150x31KRE	0.310	12152	88	150	18	8	3
RSDE-3175x36KRE	0.360	14112	105	175	18	8	3
RSDE-3200x42KRE	0.404	16464	115	200	18	8	3
RSDE-3225x46KRE	0.454	18032	135	225	18	8	3
RSDE-3250x53KRE	0.505	20776	140	250	18	8	3
RSDE-3275x57KRE	0.551	22344	165	275	18	8	3
RSDE-3300x63KRE	0.601	24696	174	300	18	8	3
RSDE-4080x11KRE	0.314	8635	58	80	22	11	4
RSDE-4120x17KRE	0.471	13345	82	120	22	11	4
RSDE-4160x23KRE	0.628	18055	105	160	22	11	4
RSDE-4200x30KRE	0.785	23550	130	200	22	11	4
RSDE-4240x36KRE	0.942	28260	150	240	22	11	4
RSDE-4280x42KRE	1.099	32970	175	280	22	11	4
RSDE-4320x49KRE	1.256	38465	200	320	22	11	4
RSDE-4360x54KRE	1.413	42390	225	360	22	11	4
RSDE-4400x62KRE	1.570	49455	240	400	22	11	4
RSDE-4440x68KRE	1.727	53380	270	440	22	11	4
RSDE-4480x74KRE	1.884	58090	295	480	22	11	4
RSDE-6100x10KRE	0.646	17650	55	100	31	15	6
RSDE-6150x16KRE	0.964	28240	84	150	31	15	6
RSDE-6200x20KRE	1.287	35300	120	200	31	15	6
RSDE-6250x25KRE	1.606	44125	150	250	31	15	6
RSDE-6300x31KRE	1.933	54715	175	300	31	15	6
RSDE-6350x36KRE	2.252	63540	210	350	31	15	6
RSDE-6400x40KRE	2.575	70600	245	400	31	15	6
RSDE-6450x46KRE	2.906	81190	280	450	31	15	6
RSDE-6500x51KRE	3.216	90015	310	500	31	15	6
RSDE-6600x62KRE	3.853	109430	360	600	31	15	6
