Linear Components & Slides

overlay

Filters

Component

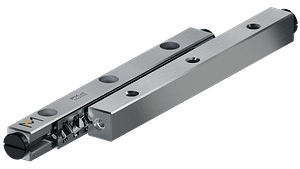

Ball guide type RSD / Cross roller guide type RSD

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground.
  • Various type of ball and roller cages are available to suit the application need.
  • The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.
  • Stroke lengths are made to customer requirement.

Component

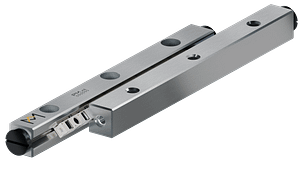

Deep groove cross-roller guide type RSDE

  • Through-hardened 90-degree deep V-groove rails made of bearing steel, precision ground. Minimal gab between two rails reduces risk of contamination entering the bearing.
  • POM roller cage type KRE with small distance between the rollers, which are retained in the cage. (optional PEEK material cages available)
  • The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.
  • Stroke length to be determined by the user (by rail length and cage length).

Component

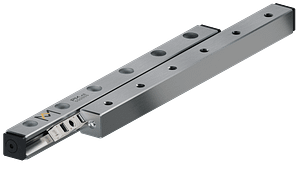

Cross roller guide type RNG

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground. Very compact set of rails with high load capacity for use in small spaces.
  • POM roller cage type KRE with small distance between the rollers, which are retained in the cage. (Optional PEEK material cages available.)
  • The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.
  • Stroke length to be determined by the user (by rail length and cage length).

Component

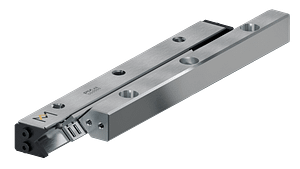

Needle roller linear guideways N/O

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground. The V-groove is designed for needle roller cages offering long contact lines.
  • High density needle roller cage with small distance between the needles, which are retained in the cage. Two type of cages are available, with plastic and aluminum body.
  • The rail mounting holes are through non-treaded and countersunk so that the rails can be fixed with threaded holes in the user's components.
  • Stroke lengths are made to customer requirement.

Component

Needle roller linear guideways M/V

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground. The V-groove is designed for needle roller cages offering long contact lines.
  • High density needle roller cage with small distance between the needles, which are retained in the cage. Two type of cages are available, with plastic and aluminum body.
  • The rail mounting holes are through non-treaded and countersunk so that the rails can be fixed with threaded holes in the user's components.
  • Stroke lengths are made to customer requirement.

Slide

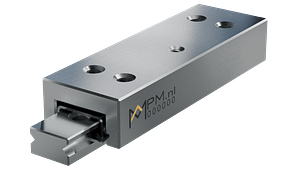

Miniature ball slide type PMM

  • Table parts stainless steel, mounting surfaces precision ground for precise mounting.
  • One-piece solid cage with 2 ball rows offers low friction and reduces the risk of cage creep.
  • Stroke range 5-70 mm.
  • Standard attachment holes for easy installation.

Slide

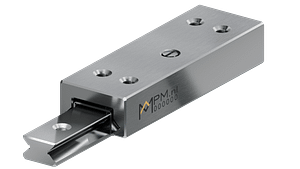

Cross roller miniature slide type PMMR

  • Table parts stainless steel, mounting surfaces precision ground for precise mounting.
  • Solid one-piece 2-row design cross roller cage reducing the risk of cage creep.
  • Stroke range 5-70 mm.
  • Standard attachment holes for easy installation.

Slide

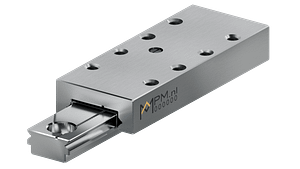

Miniature slide type MSR with anti-cage creep technology

  • All stainless steel design, no plastics or other materials are used.
  • Crossed roller linear bearings provide superior load capacity and rigidity.
  • Integrated anti-cage creep technology delivers reliable performance in all mounting orientations.
  • Mounting holes in top and base for easy assembly.

Slide

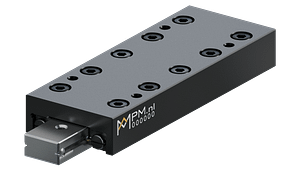

Miniature linear slide type RTS

  • Low-profile design.
  • Stroke range 12 - 130 mm.
  • Pre-drilled holes for easy mounting.
  • The through-hardened center rail serves as the slide base, ensuring consistent and highly accurate guidance.

Slide

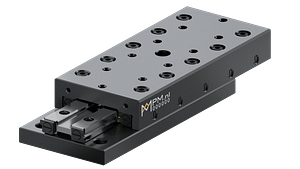

Frictionless cross roller slide type RT

  • Internal stops, created by protruding screw heads between the slide top and base, prevent overtravel of the linear bearings during handling.
  • Black oxide finishing after precision grinding of the table parts. The threaded holes in slide top and counterbored clearance holes in slide base offers easy mounting without additional machining.
  • Unique center rail design for superior straight line and flatness accuracy.
  • Stroke range 10 - 950 mm and maximum load capacity up to 71.550 N.

Slide

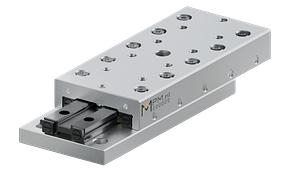

Lightweight cross roller slide type RTA

  • Internal stops, created by protruding screw heads between the slide top and base, prevent overtravel of the linear bearings during handling.
  • Clear anodized finishing of aluminum table parts with threaded holes in slide top and counterbored clearance holes in slide base offers easy mounting without additional machining.
  • Unique center rail design for superior straight line and flatness accuracy.
  • Stroke range 10 - 950 mm and maximum load capacity up to 71.550 N.

Slide

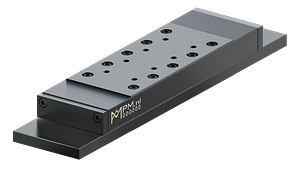

Dust-protected cross roller slide type RTNG

  • Table parts available in steel or cast iron (size 6 and 9 mm).
  • The narrow gap between upper and bottom part prevent that dirt and dust enter the linear guides and make the linear slide suitable for use in dirty environments.
  • Suitable for load carry capacities up to 35.100 N.
  • Stroke range 10 - 250 mm.

Set

Set cross roller guide type RSD

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground.
  • Size 1.5 and 2 mm; linear guide sets come with plastic cages type KZR with retained rollers. Size 3 mm and higher: AA-sheet metal type cage with retained rollers in the cage.
  • The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.
  • Stroke range 10 – 720 mm for standard sets. Sets with modified stroke lengths are available on request.

Set

Set cross roller linear guide type RSDE

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground. A deeper V-groove offers a longer contact line for the bearing rollers to carry higher loads and offering higher degree of stiffness. A small gap between two rails reduces the risk of impurities entering the bearing.
  • POM roller cage type KRE with small distance between the rollers, which are retained in the cage. (optional PEEK material cages available)
  • The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.
  • Stroke range 28 - 360 mm for standard sets. Sets with modified stroke lengths are available on request.

Set

Set cross roller guide type RNG

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground. Very compact set of rails with high load capacity for use in small spaces.
  • POM roller cage type KRE with small distance between the rollers, which are retained in the cage. (optional PEEK material cages available)
  • The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.
  • Stroke range 30 - 245 mm for standard sets. Sets with modified stroke lengths are available on request.

Set

Set cross roller guide type RSDE with anti-cage creep technology

  • Through-hardened 90-degree V-groove rails made of bearing steel, precision ground with anti-cage creep rack bonded in bottom of the V-groove. A small gap between two rails reduces the risk of dust and chips entering the bearing.
  • POM roller cage type KRE with small distance between the rollers, which are retained in the cage. The cage features a stainless steel pinion in the cage center, used for the anti-cage creep solution. (optional PEEK material cages available)
  • The rail mounting holes are both threaded and countersunk so that either standard screws or the next smaller screw size can be used in combination with threaded holes in the user's components.
  • Stroke range 25 - 310 mm for standard sets. Sets with modified stroke lengths are available on request.

Set

Set Linearführungen RNG-4150x22KRE-ACC

Set cross roller guide type RNG with anti-cage creep technology

  • Through hardened bearing steel 90 degrees V-groove rails, precisely ground with anti-cage creep (ACC) technology included. It utilizes a very compact size rail set with high load capacity for use in the smallest installation space.
  • POM roller cage type KRE with retained rollers and a pinion, located in the cage centre for anti-cage creep purpose. (Optional PEEK material cages available.)
  • The rail’s mounting holes are both threaded and counterbored, allowing the use of either standard screws or the next smaller screw size in combination with threaded holes in the user’s components.
  • Stroke range 27 - 250 mm for standard sets. Sets with modified stroke lengths are available on request.
