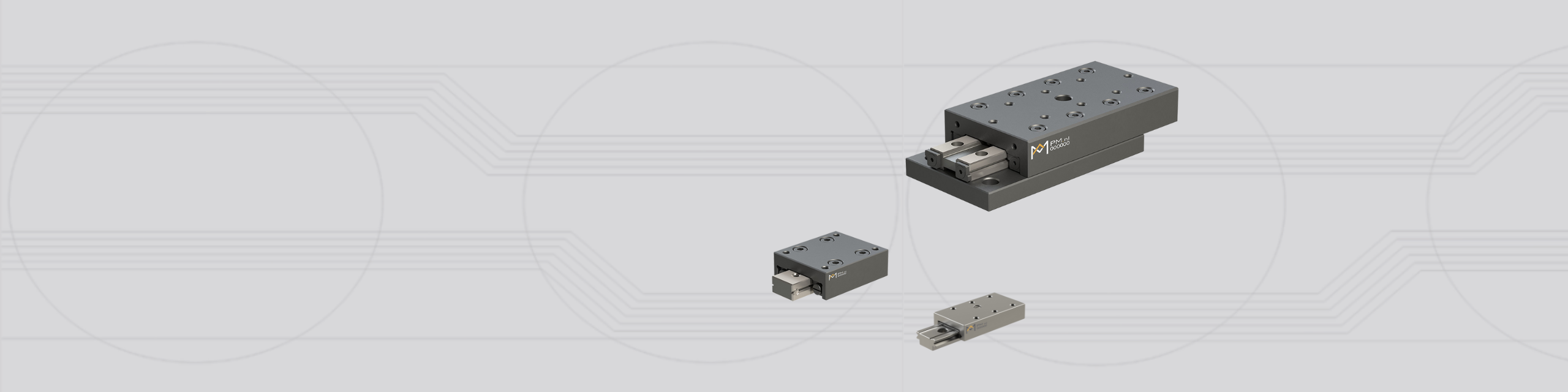

Crossed Roller Slides
Crossed roller slides are available in many designs, ranging in size for the use in general machines as production automation to small desktop devices with limited space for the medical industry. Crossed roller slides are used for precise linear motion and are used to move products and samples with the highest degree of repeatability. These running accuracies are in the micrometer range.

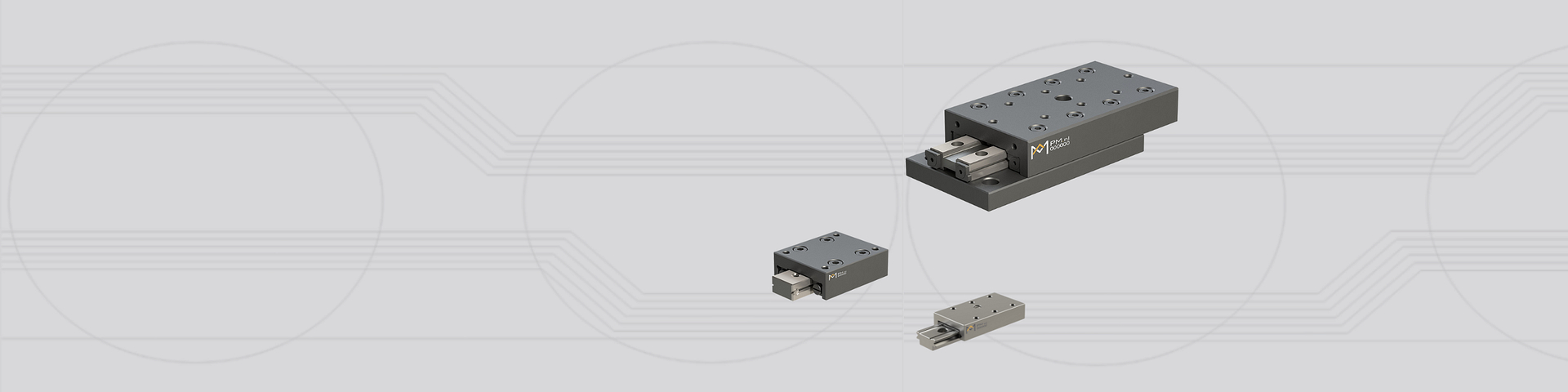

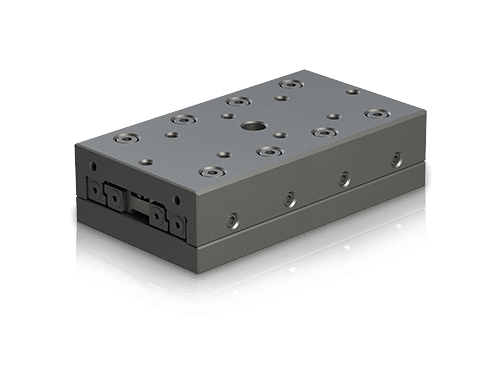

Advantages of crossed roller slides

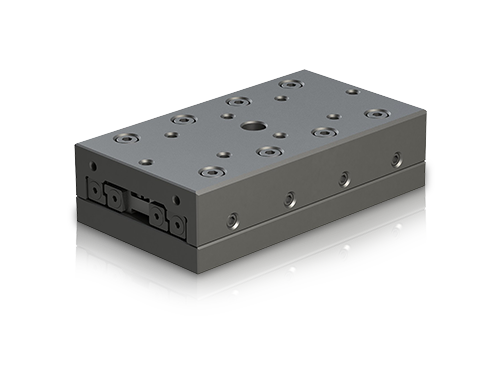

PM crossed roller slides offer many advantages compared to other linear slides.
- Low friction <0.003 and extremely smooth running
- Stick-slip free
- Play-free preloaded/zero backlash
- Compact design
- Long service life
- Running accuracies at the micrometer level
Wide choice of variants
The crossed roller slides can be used universally and can be mounted in any direction. They have a standard mounting hole pattern for simple mounting. The various versions in different sizes and lengths offer an optimal choice of models. The cross roller guides guides are preloaded and lightly oiled ex works and thus ready for installation.
Typical applications
Crossed roller slides are essential for applications that require precision. Typical applications are:
- Measuring and testing
- Microscopy
- Pick-and-place/automation
- Robotic surgery
- Research
Customized Solutions

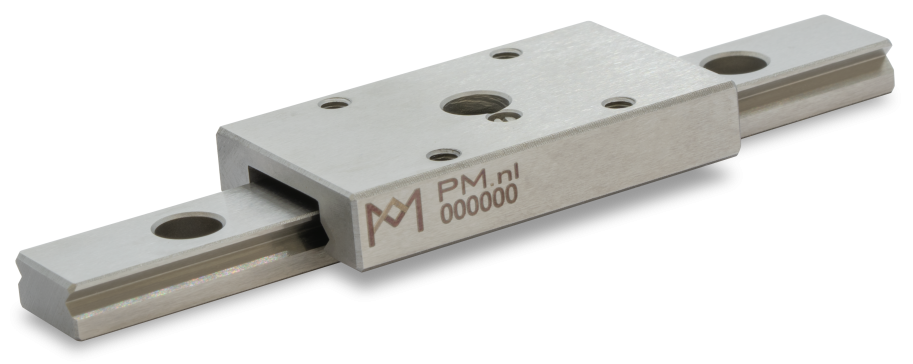

When a standard product does not meet requirements, we supply customer-specific solutions. We have in-house design, manufacturing, and assembly capabilities. Examples of customizations are:
- Boundary dimensions
- Different materials
- Vacuum and UHV-compatible
- Improved raceway surface of linear guides
- Increased speeds/acceleration
With over 50 years of experience, we are able to meet the highest requirements.
Contact us to discuss your requirements by sending an email to sales@PM.nl. We will contact you to discuss your requirements.
Categories crossed roller slides
Crossed roller tables are divided into two categories::
1. Cross roller tables
Crossed roller slides, also known as frictionless tables, consist of equal-length table top and bottom. The slide unit includes cross roller guides. The guides are playfree preloaded by lateral set screws. This allows precise adjustment of these linear slides.
For higher rigidity, the preload can be increased and for very smooth running, the preload can be set to a very low value. If desired, the cross roller cage can be exchanged for a ball cage.
2. Miniature slides

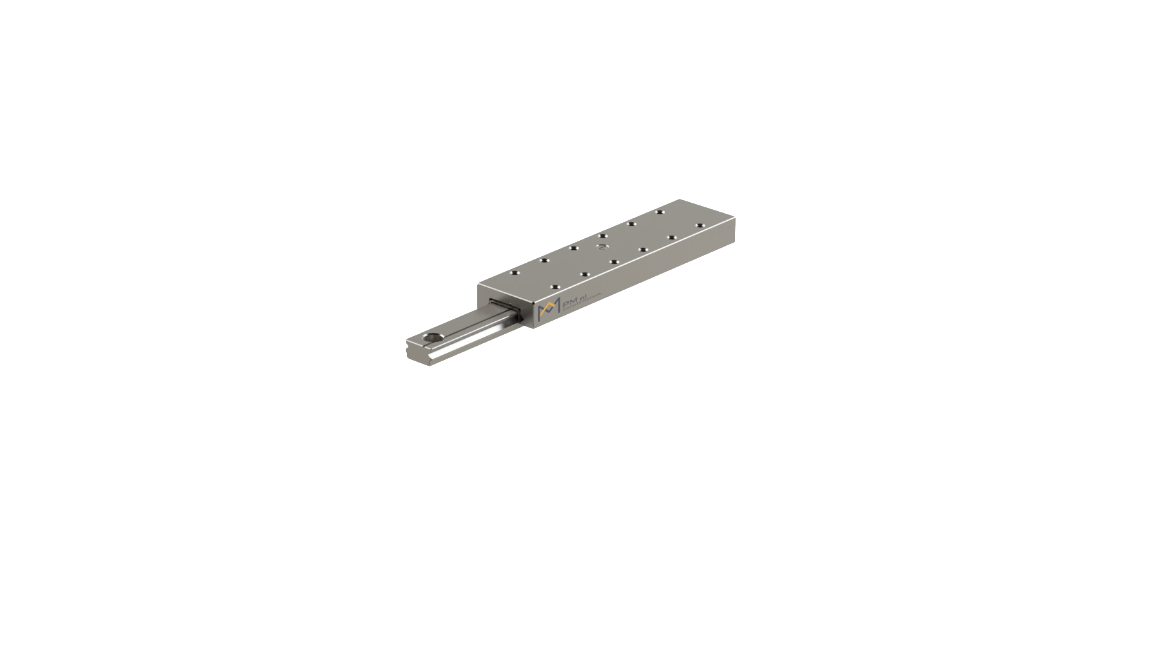

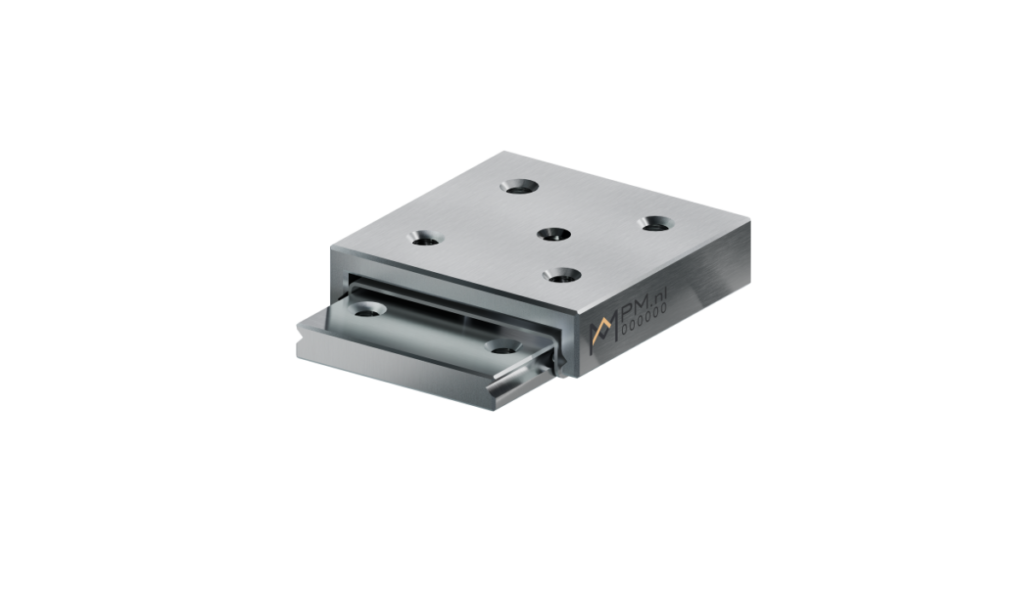

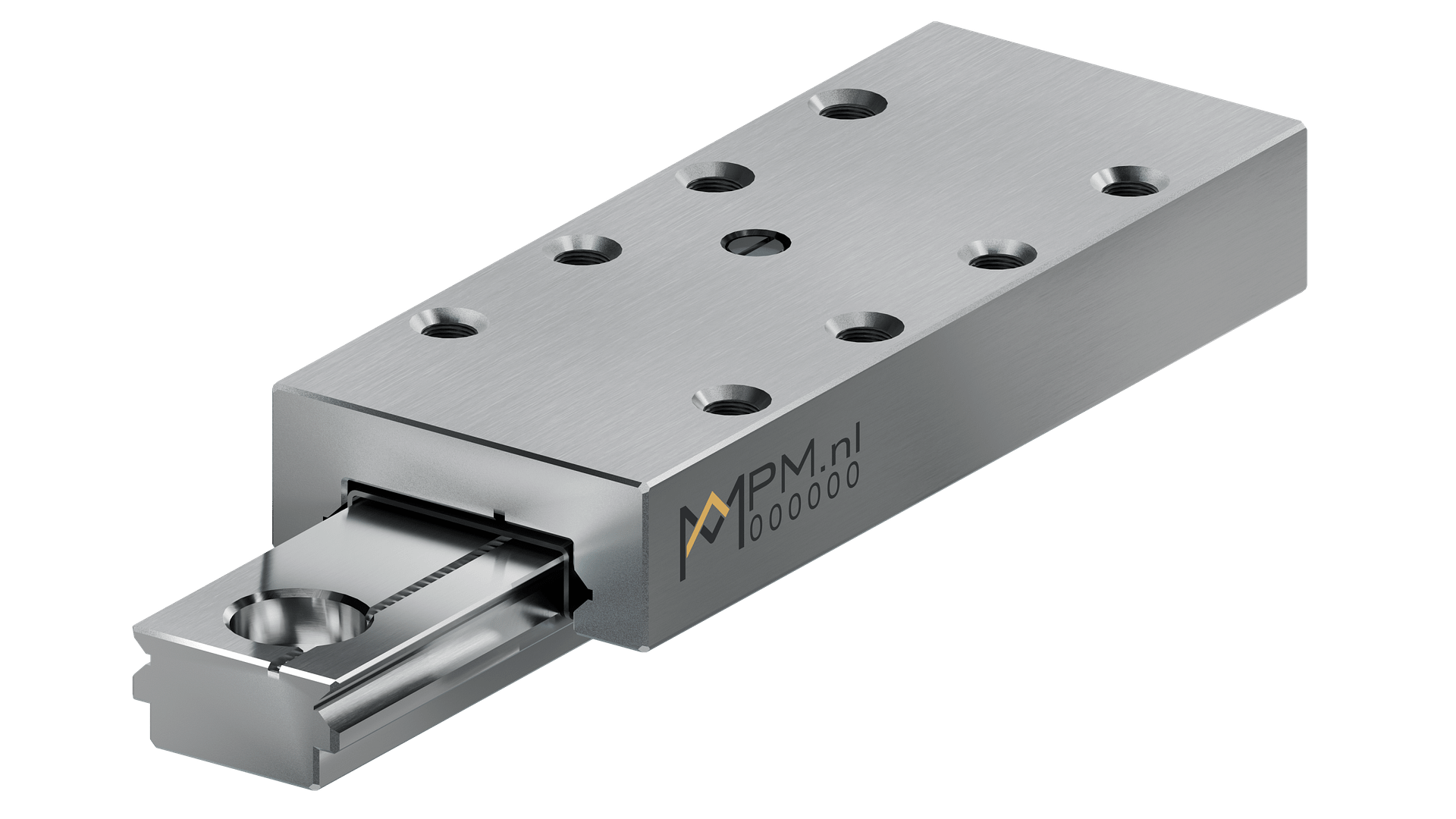

Miniature linear slides are characterized by their very compact external dimensions. This allows them to meet customers’ requirements for miniaturization. By reducing the size of the slides and optimizing the linear guides, these slides can move relatively large masses with a long service life.

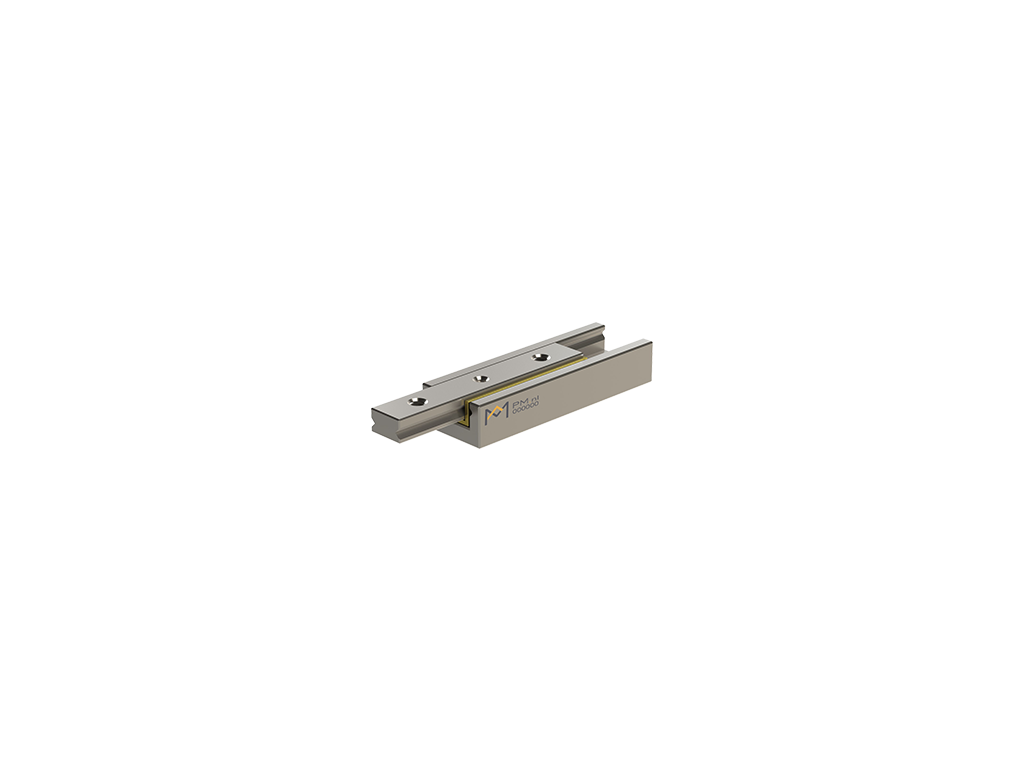

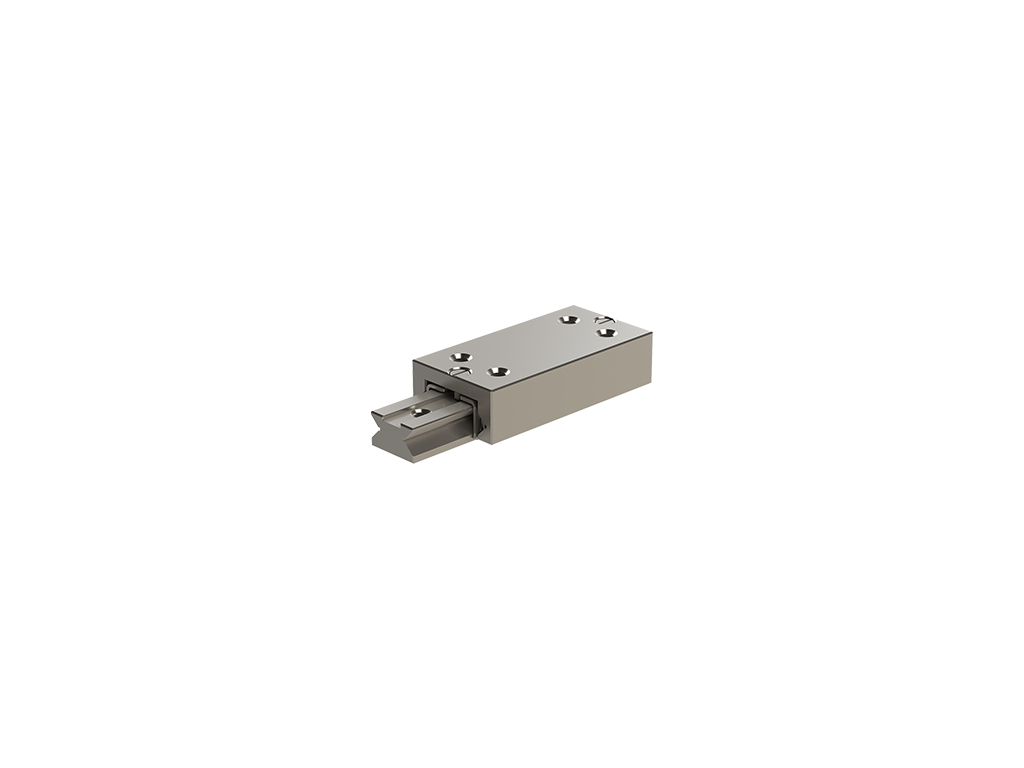

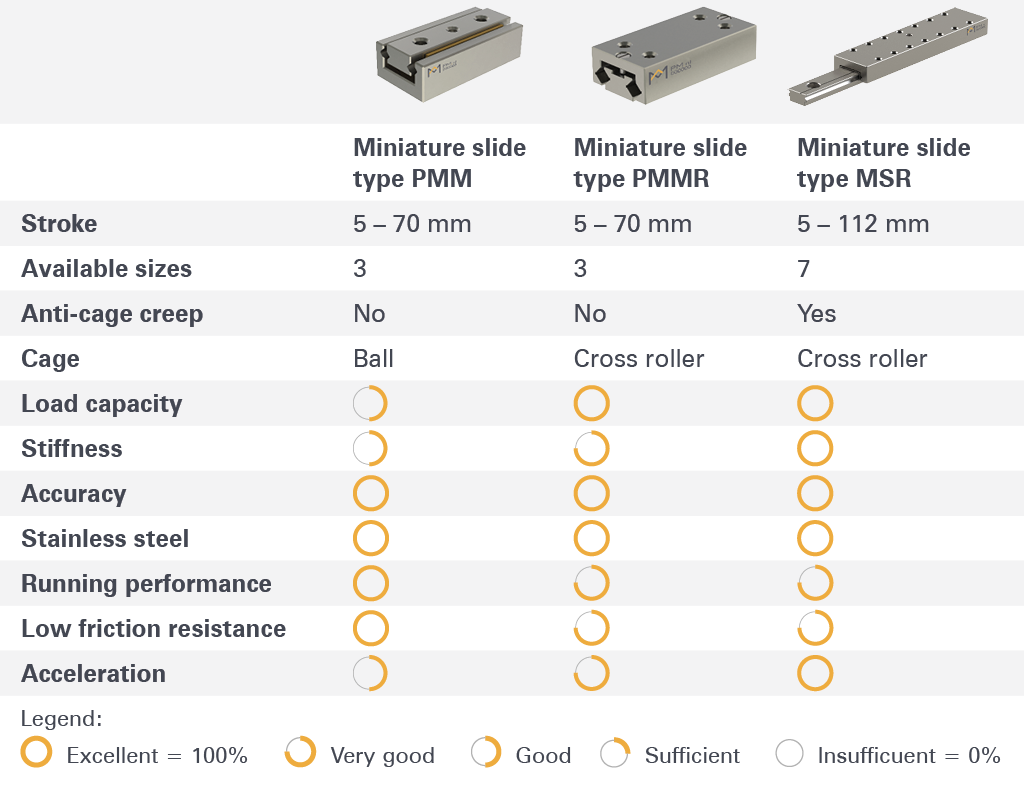

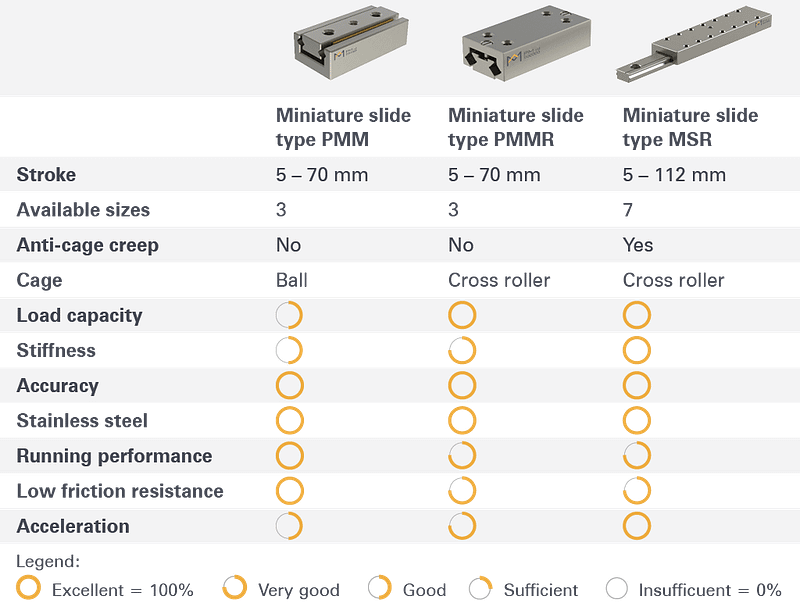

Miniature slides differ from crossed roller tables in their guide elements. In miniature slides, the linear guides are integrated into the table design. Preload is achieved by geometric matching of the balls (type PMM) or cylindrical rollers (type PMMR and type MSR). Another common feature of the miniature slides is that they are all made of stainless steel.
Miniature slides from PM drive the trend towards miniaturization.

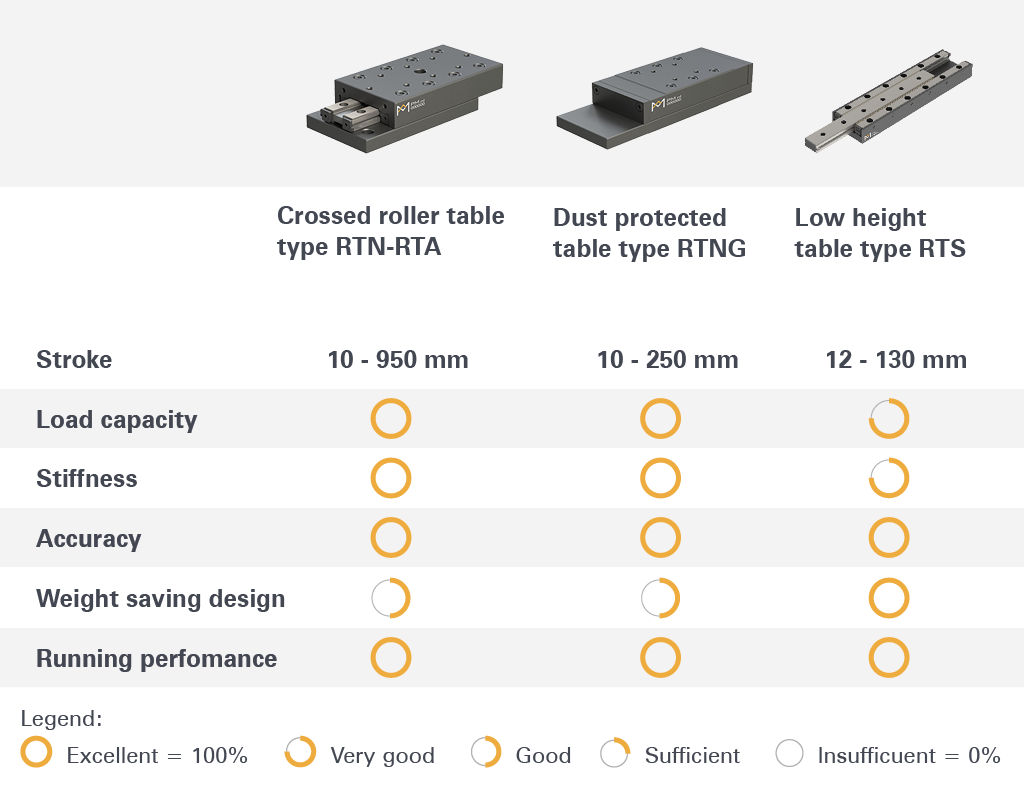

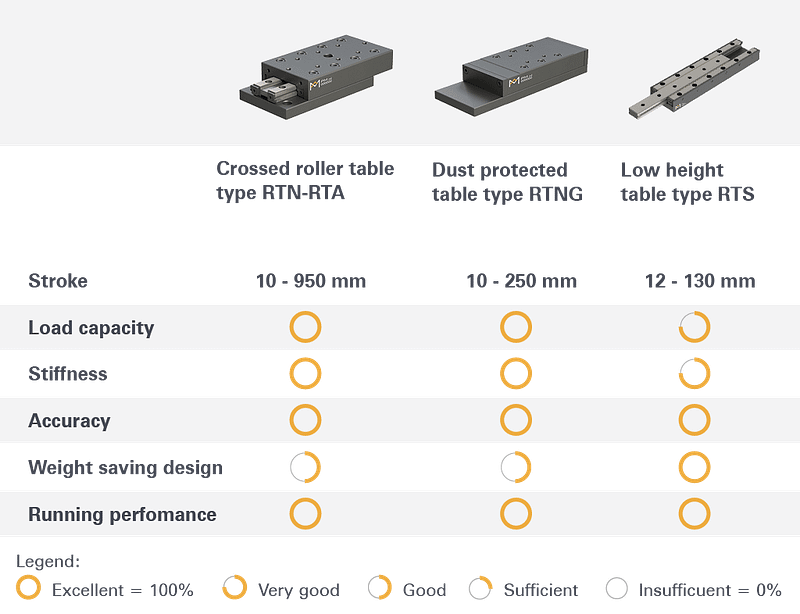

Product selection crossed roller slide
The most important performance features of the slides are clearly presented. For special requests, such as a different length, it is possible to manufacture the product individually. Please contact us for further information.

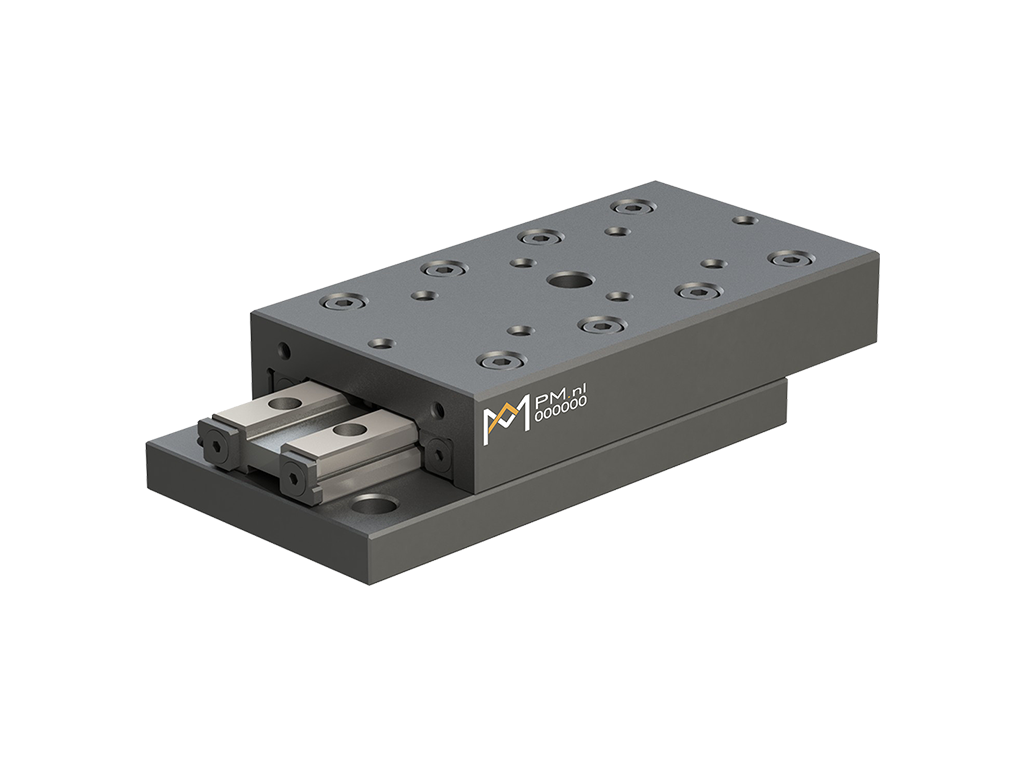

Click here to visit the product page of steel linear slides type RTN.

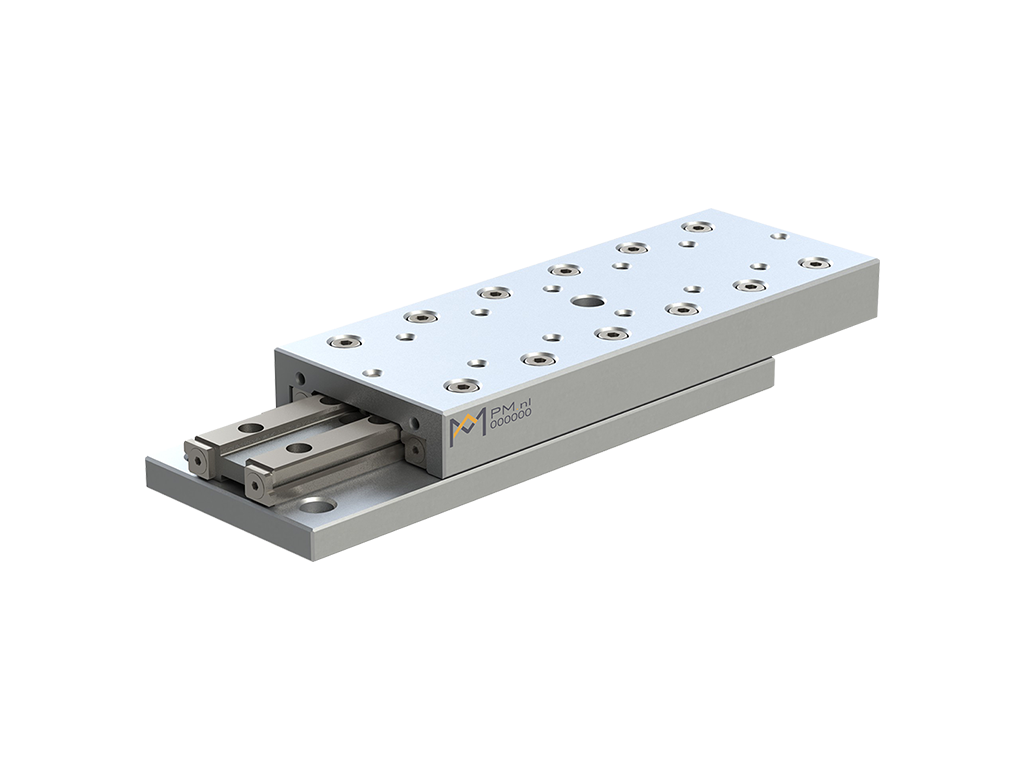

Click here to visit the product page of aluminum linear slides type RTA.

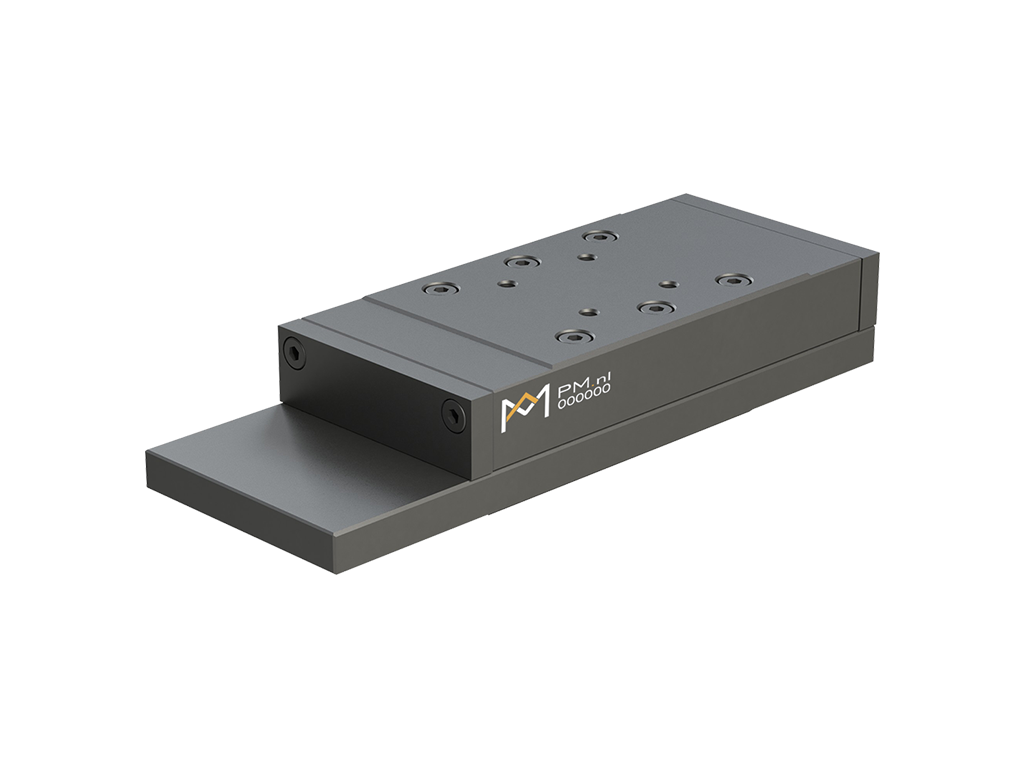

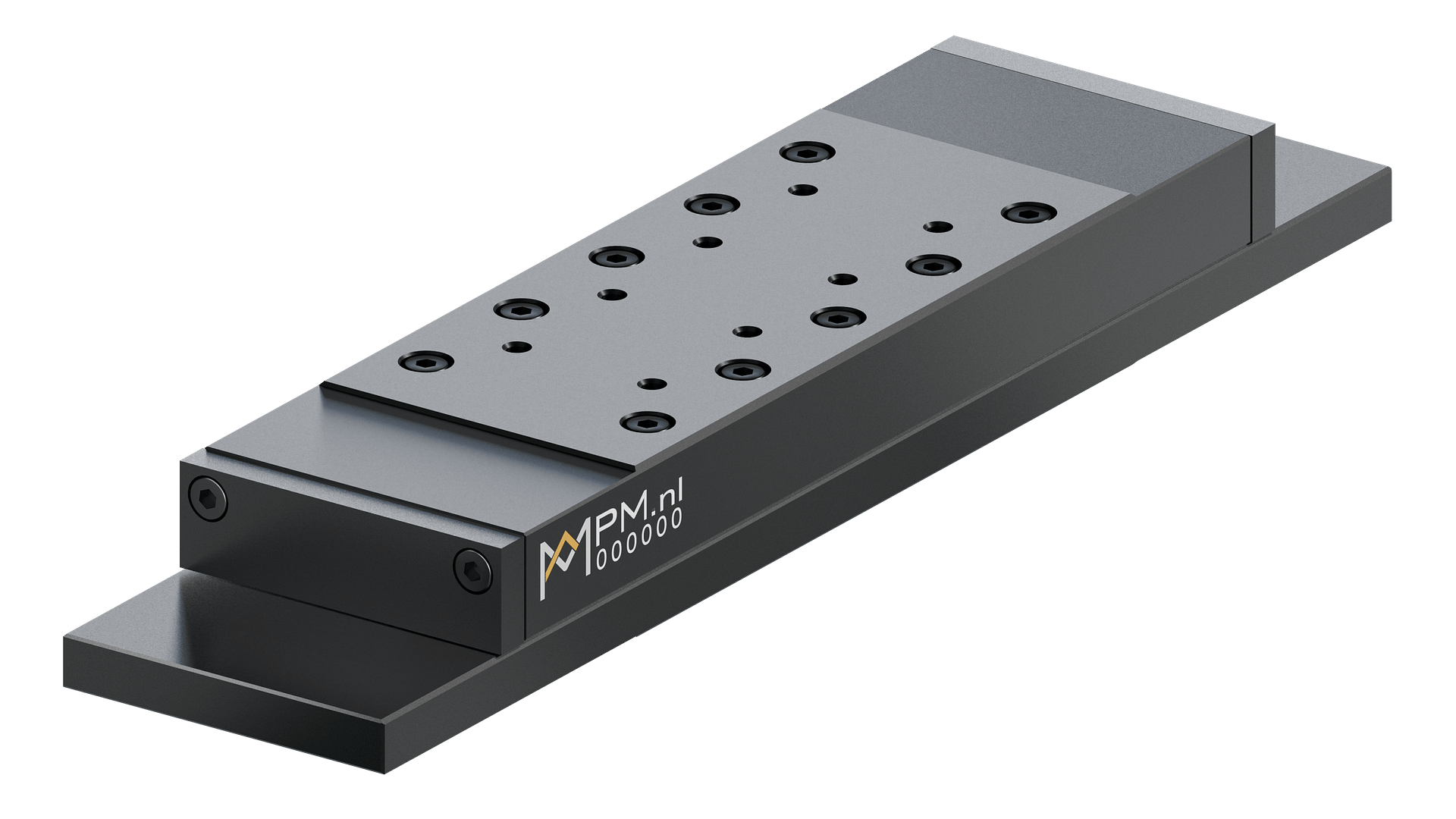

Click here to visit the product page of linear slides for use in dust environments, type RTNG.

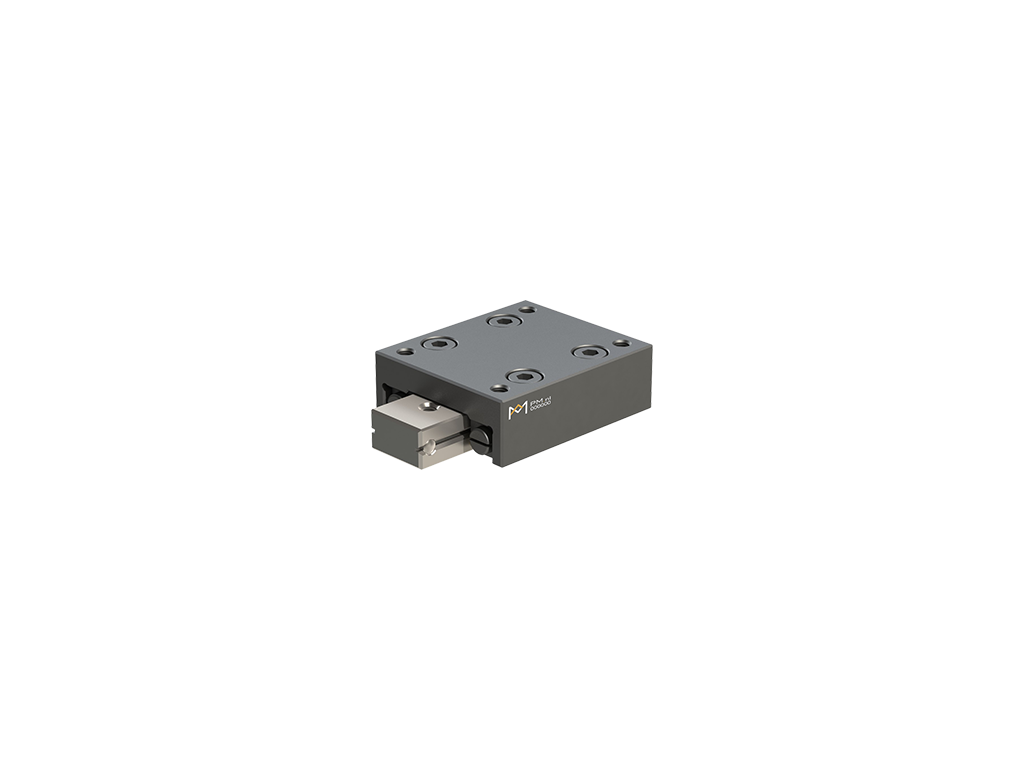

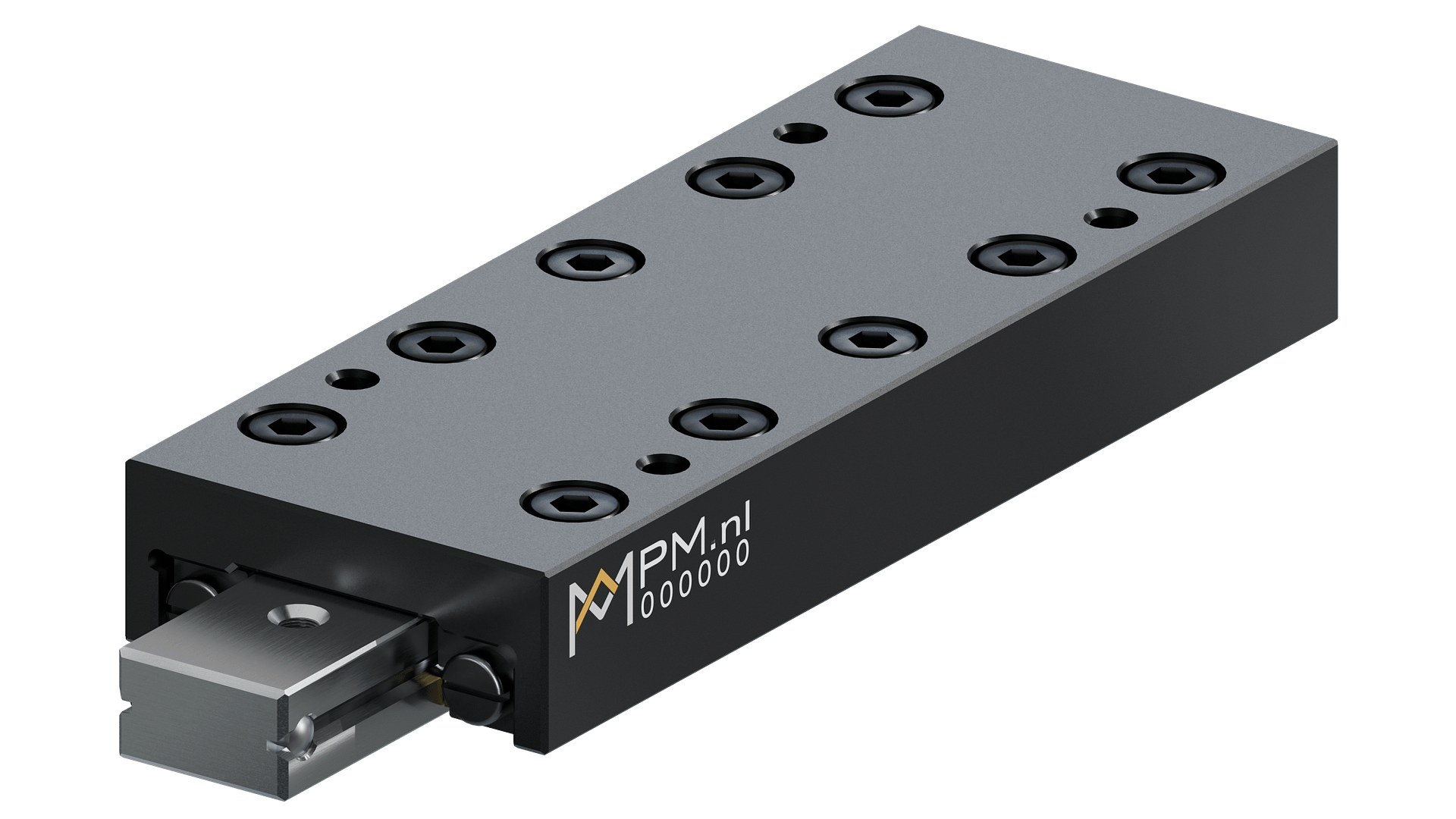

Click here to visit the product page of steel linear slides with low height, type RTS.
Crossed roller slides: more information and 3D STP files
